Features
01Combining the latest technology and years' experience into a whole.
02Adopting method of countercurrent washing, excellent washing result, mud and sand removing.
03Reasonable feeding structure. The damage rate of raw material is under 1% and this can ensure high starch extraction yield.
04Compact design, big capacity, energy and water saving
05Material unloaded through blade, which is made of high rigid alloy and can be adjusted .
06Stable operation and rational motor equipped.
07The rotating drum is made of high quality shell perforated with numerical control punch for long time.
08Easy to installation and maintenance.

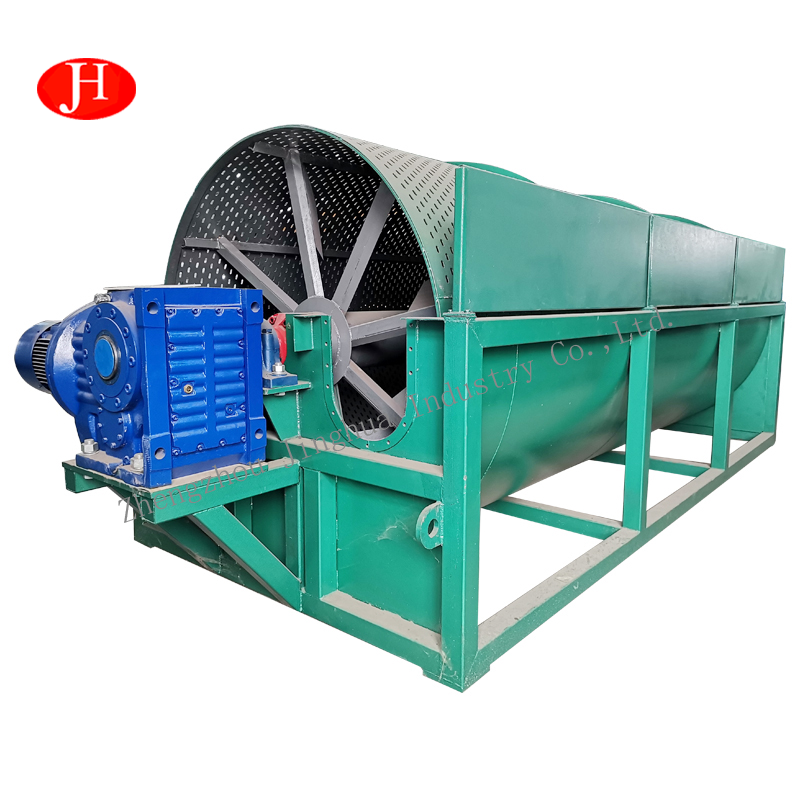

Product Details
Product details showcase quality
The washing machine is designed with counter-current washing, that is, the washing water enters the washing machine from the material outlet.
Cassavas enter into the ring type washing slot , This wash slot is three phase circle type and adopting countercurrent washing type. The water consumption capacity is 36m3. It can remove mud, skin and impurity from cassava sufficiently.
The cleaned sediment skin falls between the drum and the inner wall of the water tank through the mesh, moves forward under the push of the blades, and is discharged through the overflow tank.
Suitable for sweet potato starch, potato starch and other starch production enterprises.
Main Technical Parameters
|
Model |
Drum diameter |
Drum length |
Capacity |
Power |
Dimension |
Weight |
|
DQXJ190x450 |
Φ1905 |
4520 |
20-25 |
18.5 |
5400x2290x2170 |
5200 |
|
DQXJ190x490 |
Φ1905 |
4920 |
30-35 |
22 |
5930x2290x2170 |
5730 |
|
DQXJ190x490 |
Φ1905 |
4955 |
35-50 |
30 |
6110x2340x2170 |
6000 |
Application Scope
Rotary drum washer is applied to wash potatoes, plantains, sweet potatoes and etc.
Sweet potato starch, potato starch and other starch production enterprises.
