01Cage cleaning machine adopts horizontal drum with internal screw guiding feeding, and the material moves forward under the thrust of the screw.
02Combining the latest technology and years' experience into a whole.
03Adopting method of countercurrent washing, excellent washing result, mud and sand removing.
04Reasonable feeding structure. The damage rate of raw material is under 1% and this can ensure high starch extraction yield.
05Compact design, big capacity, energy and water saving.
06Stable operation and rational motor equipped.
07The rotating drum is made of high quality shell perforated with numerical control punch for long time.
08Fully stainless steel to be sure there is no corrosion.
09Stable operation and low damage to be profitable for starch extraction.
10Easy to installation and maintenance.

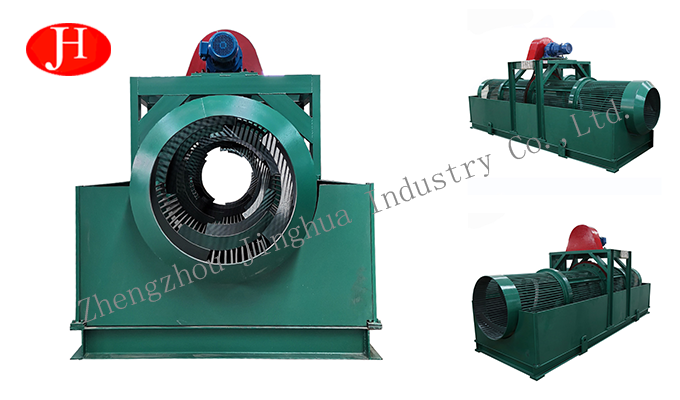

Product Details
Product details showcase quality

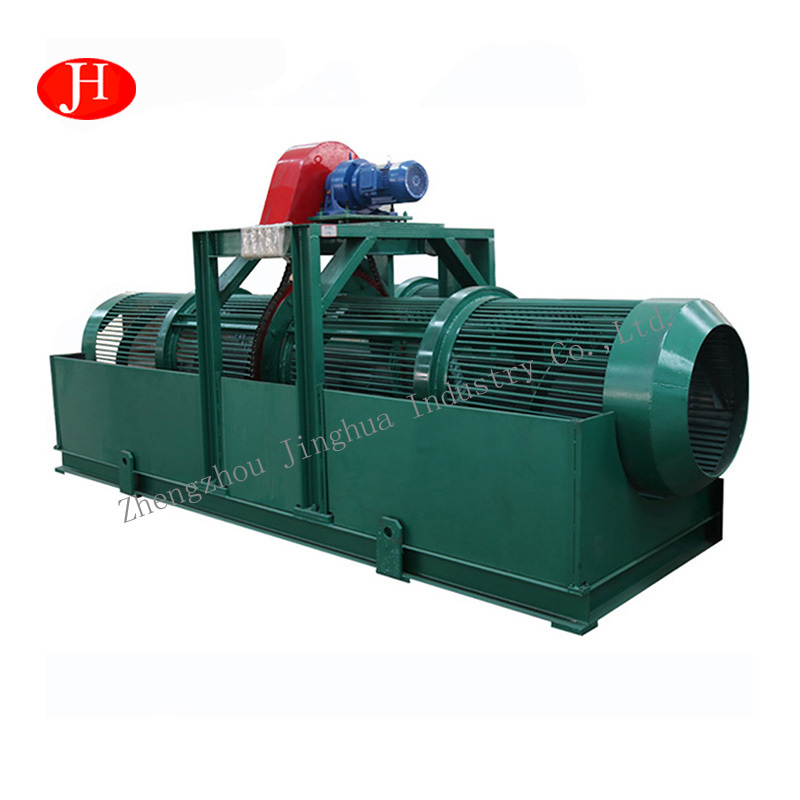

Cage cleaning machine adopts horizontal drum with internal screw guiding feeding, and the material moves forward under the thrust of the screw.
Cage cleaning machine is used to clean up the sand, stones and potato skin of sweet potato, potato, cassava and other potato materials.
After the cage cleaning machine preliminary stone, the use of the rotary cleaning machine cleaning, can save water, improve work efficiency.
Main Technical Parameters
|
Model |
Drum diameter (mm) |
Drum speed (r/min) |
Drum lenght (mm) |
Power (Kw) |
Weight (kg) |
Capcity (t/h) |
Dimension (mm) |
|
GS100 |
1000 |
18 |
4000-6500 |
5.5/7.5 |
2800 |
15-20 |
4000*2200*1500 |
|
GS120 |
1200 |
18 |
5000-7000 |
7.5 |
3500 |
20-25 |
7000*2150*1780 |
Application Scope
Cage cleaning machine is used to clean up the dirt, stones and sundries of sweet potato, potato, cassava and other potato materials.
Suitable for sweet potato starch, potato starch and other starch production enterprises.
