Hydrocyclone Nozzle
Keywords：
Hydrocyclone Nozzle
Projects
ABOUT US
Company Display
360 Degree Company Display
Features
01Fully stainless steel to be sure there is no corrosion.
02Advanced surface treatment craft. Oil and dirty resisting.

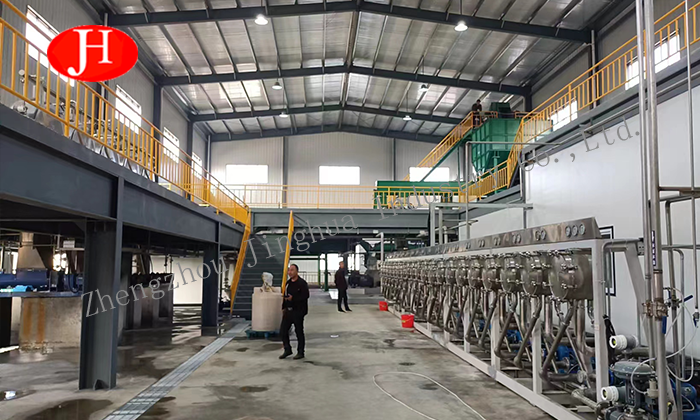

03Widely used for starch extraction in starch processing plants.

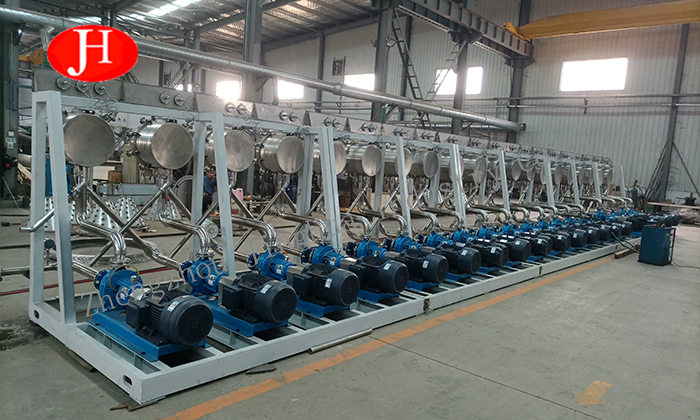

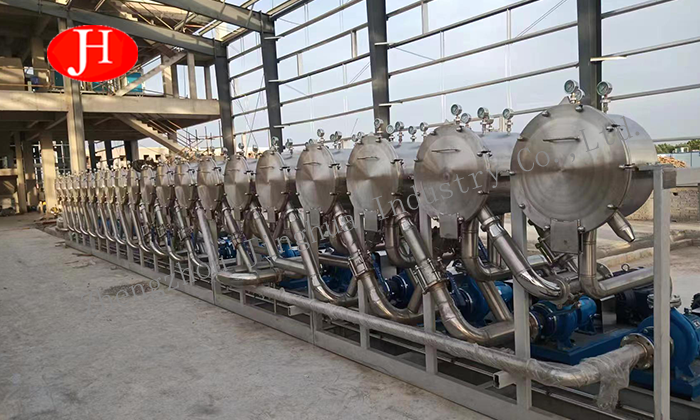

04Multifunction of concentration, recovery, washing and separation for hydrocyclone group.

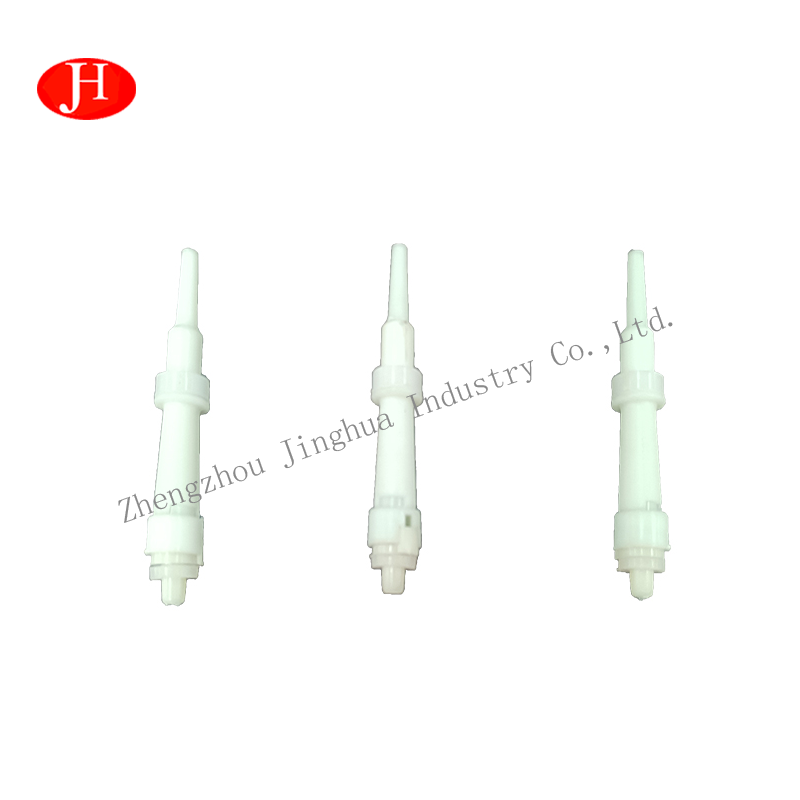

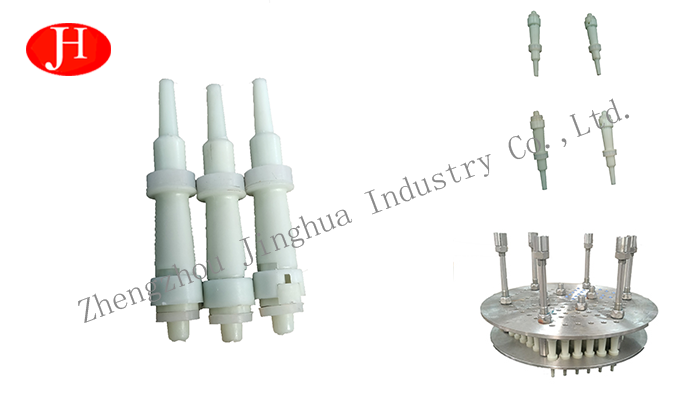

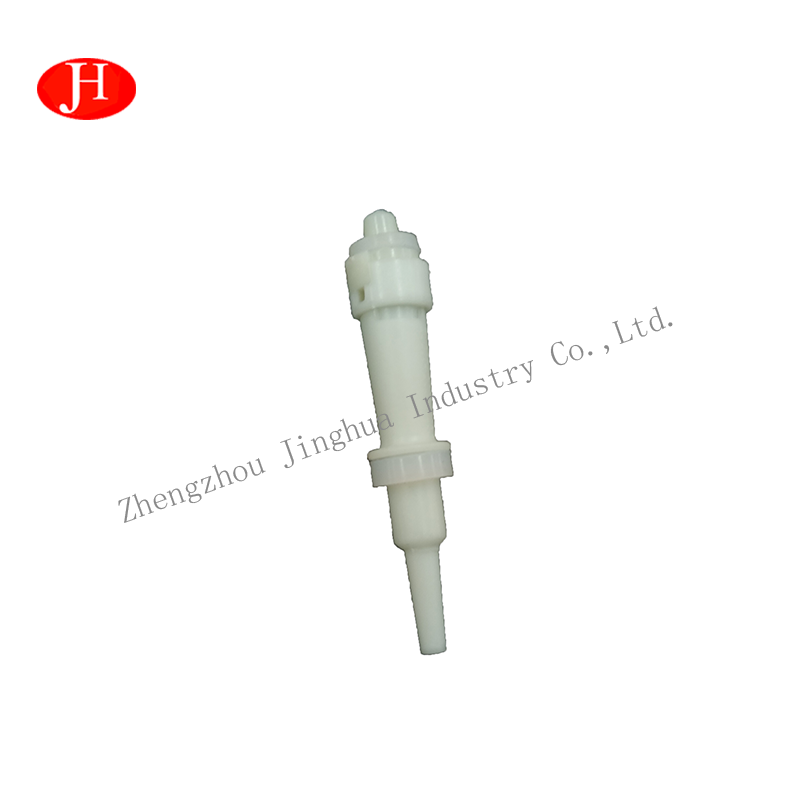

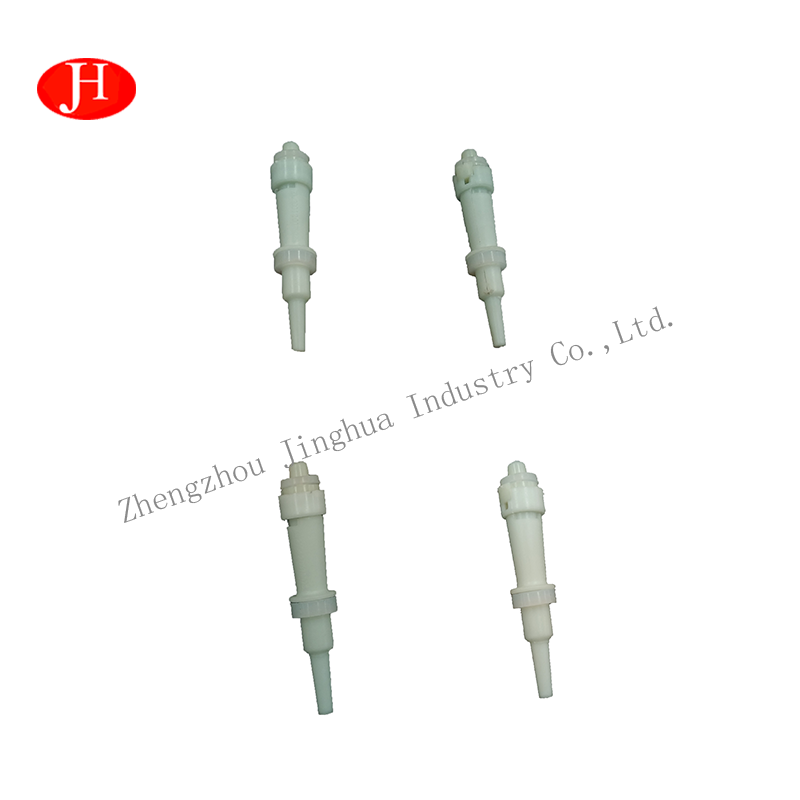

05Cyclone pipes are made from material of reinforced nylon with high strength, deter abrasive resistance and excellent separation result.
06Hydroclone designing is adopted to get better starch separation according to the features of different material.
07Pipeline of hydrocyclone group passes computer optimization design. Compact and elegant.
08Fully stainless steel to be sure there is no corrosion.
Product Details
Product details showcase quality
Starch milk enters the middle cavity of the cylinder body through the starch pump from the feeding port of the cyclone. Starch paste enters the inlet of the cyclone tube and enters the inner part of the cyclone tube along the tangent direction of the cyclone tube. In the swirl tube, the material components rotate according to the spiral line and generate centrifugal force.
And relative density of small proteins and water centrifugal force is small, the spiral motion, is reduced to about the lower part of the cone resistance by bottom LiuKou formed in the reverse direction of rotation of the spiral vortex uplink to LiuKou eduction, so as to achieve the purpose of each one.
Main Technical Parameters
|
Model |
XL325 |
XL438 |
XL516 |
XLS426 |
|
|
Plate quantity |
1 |
1 |
1 |
2 |
Group capacity: Total weight: |
|
Cylinder diameter(mm) |
362 |
438 |
516 |
426 |
|
|
Cylinder norm(mm) |
10,15 |
10,15 |
10,15 |
10,15 |
|
|
Feed Pressure(MPa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
|
Inlet Size(mm) |
76 |
89 |
89 |
2* 89 |
|
|
Underflow Size(mm) |
48 |
48 |
57 |
76 |
|
|
Top flow Size(mm) |
57 |
57 |
76 |
2- 57 |
Application Scope
Which is widely used in the processing of potatoes, cassava, sweet potatoes, corn, wheat, valley (m) starch, andmodifiedstarch.
