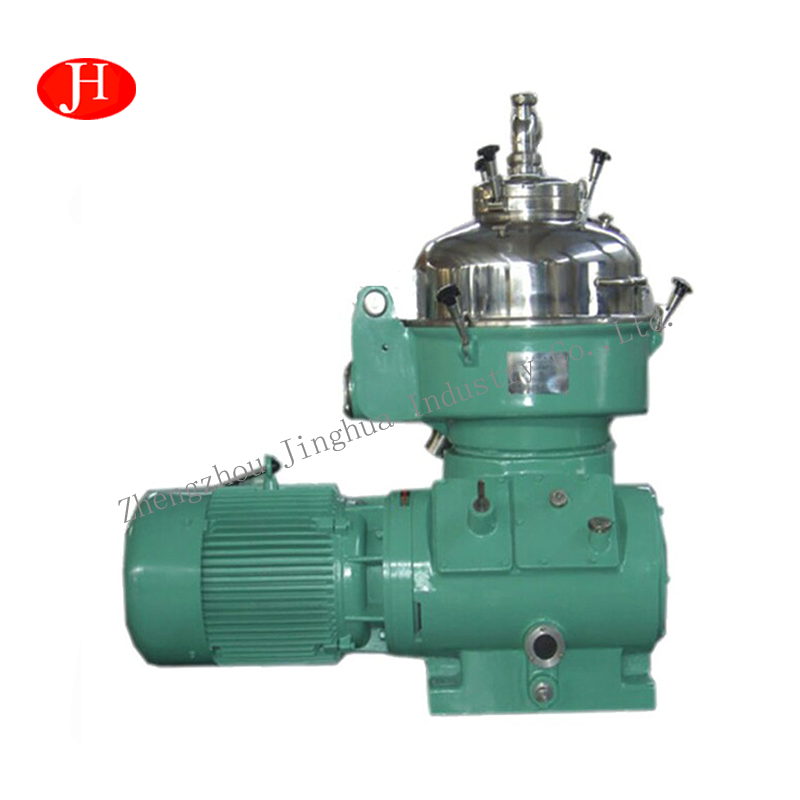

Disc Separator Machine
Keywords：
Disc Separator Machine
Projects
ABOUT US
Company Display
360 Degree Company Display
Features
01Disc separator is mainly used for starch production separating, concentrating and washing starch and protein in starch processing industry .
02The machine can also be applicable to the pharmaceutical, chemical and food industries for producing of material sources which are adapted to functions of this machine.
03The equipment adopts all stainless steel structure to effectively avoid the pollution of materials.
04High rotating speed , high separating factor , low power and water consumption.
Product Details
Product details showcase quality
Gravity arc sieve is a static screening equipment, which separates and classifies wet materials by pressure .
The slurry enters the concave screen surface from the tangential direction of the screen surface at a certain speed (15-25M/S) from the nozzle. The high feeding speed causes the material to be subjected to centrifugal force, gravity and the resistance of the screen bar on the screen surface. the role of When the material flows from one sieve bar to another, the sharp edge of the sieve bar will cut the material.
At this time, the starch and a large amount of water in the material pass through the sieve and become the undersize, while the fine fiber residue flows out from the end of the sieve surface and becomes the oversize.
Main Technical Parameters
|
Main parameter |
DPF500 |
DPF800 |
DPF1000 |
|
Bowl Inner Diameter |
470 mm |
810 mm |
1000 mm |
|
Bowl Rotating Speed |
5100 rpm |
3000 rpm |
2700 rpm |
|
Nozzle |
10 |
20 |
30 |
|
Separating Factor |
6900 |
4950 |
4150 |
|
Throughput Capacity |
50000 L/h |
130000 L/h |
240000 L/h |
|
Motor Power |
37 Kw |
110 Kw |
250 Kw |
|
Overall Dimension (L×W×H) mm |
2013×786×1714 |
2808×1575×2319 |
3950×2050×3050 |
|
Weight |
1900kg |
6550kg |
1000kg |
Application Scope
