Convex-teeth Mill Degerminator
Keywords：
Convex-teeth Mill Degerminator
Projects
ABOUT US
Company Display
360 Degree Company Display
Features
01Convex-teeth mill is a kind of coarse crushing equipment used for wet starch production.
02All parts in connection with material is made of stainless steel to prevent material pollution.
03Long service life and easy to matintain.
041 year warranty and lifelong maintenance.
05It can also be used coarse crashing of soybean because the spacing is adjustable .
Product Details
Product details showcase quality

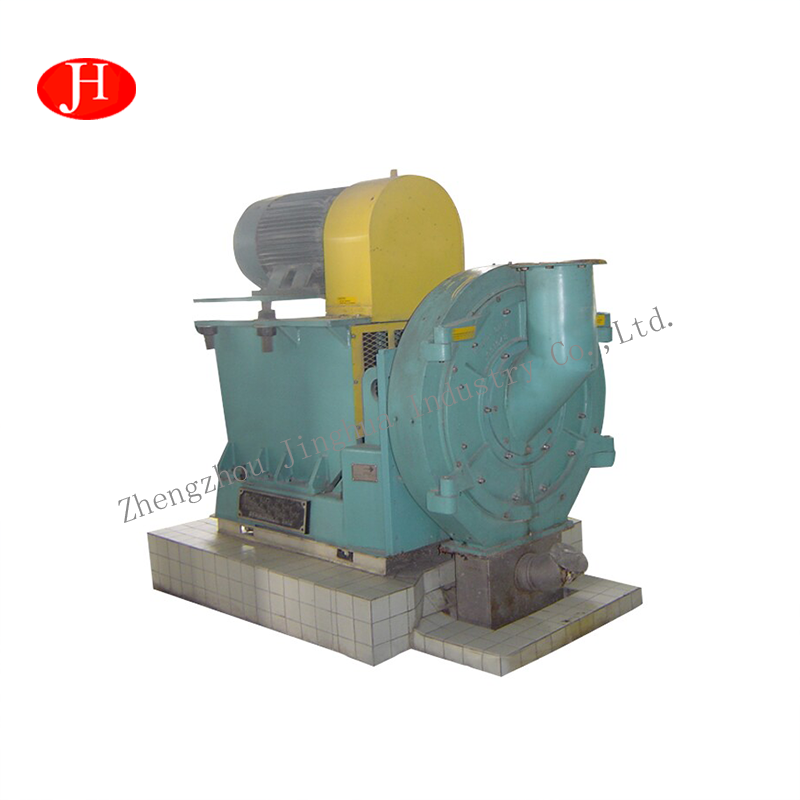

The front of the convex-teeth degerminator is fixed with a front bearing sleeve, the front bearing sleeve is fixed with a rear bearing sleeve, the rear bearing sleeve is fixed with a rear bearing, the rear end of the main shaft is installed in the rear bearing, the front part is installed in the front bearing, the central fixed spindle pulley is connected with the motor pulley on the motor shaft through a belt, and the moving disc fixed in the front end of the main shaft is seated in the housing.
Moving plate seat is fixed above the moving gear plate and dial plate, located in the cover of the static plate is installed on the static plate seat, static plate seat and installed on the cover of the static gear plate adjustment device connected together.
Main Technical Parameters
|
Model |
Rotator diameter |
Rotator Speed |
Dimension |
Motor |
Weight |
Capacity |
|
MT1200 |
1200 |
880 |
2600X1500X1800 |
55 |
3000 |
25-30 |
|
MT980 |
980 |
922 |
2060X1276X1400 |
45 |
2460 |
18-22 |
|
MT800 |
800 |
970 |
2510X1100X1125 |
37 |
1500 |
6-12 |
|
MT600 |
600 |
970 |
1810X740X720 |
18.5 |
800 |
3.5-6 |
Application Scope
Widely used in corn starch, soybean starch and other starch enterprises this is professionequipment in corn starch processing plant.
It is mainly used for coarse crushing of soaked corn kernels and corn kernels containing germ.
