Blade For Rasper Cutting Machine
Keywords：
Blade For Rasper Cutting Machine
Projects
ABOUT US
Company Display
360 Degree Company Display
Features
01All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
02High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
03Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
04Components(bearings for example) are imported from Europe with longer service life
05Unique sieve-tension gear makes disassembly easy.

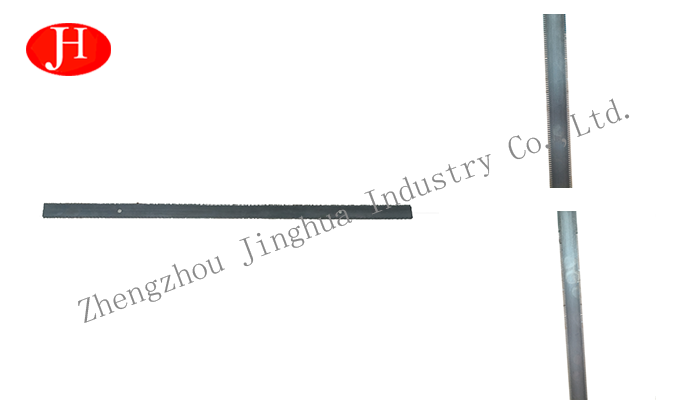

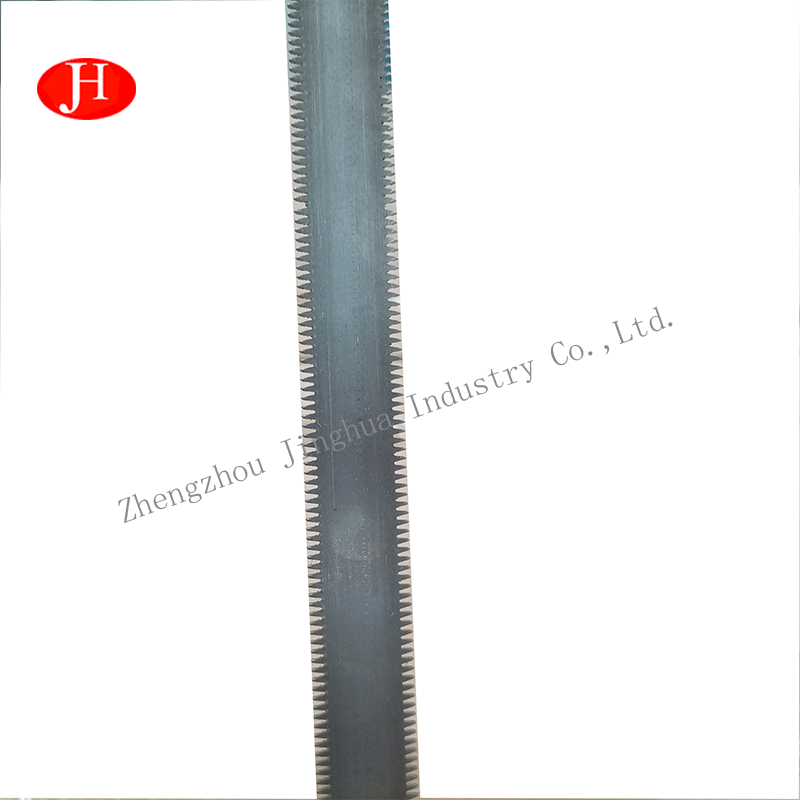

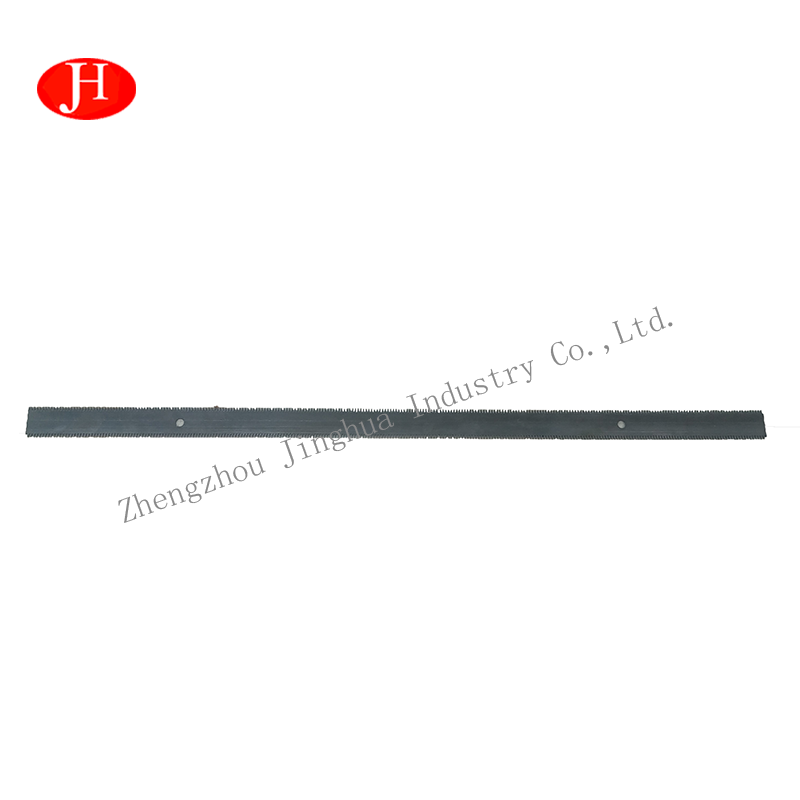

06Saw Blade is manufactured with special steel by special process, with higher hardness and wear resistance.
07Rasping bulk is cast of high-chromium iron, hardness reaching HRC60, having excellent wear resistance.
08Unique drum groove and layering instrument design benefits saw blade changing.
Product Details
Product details showcase quality

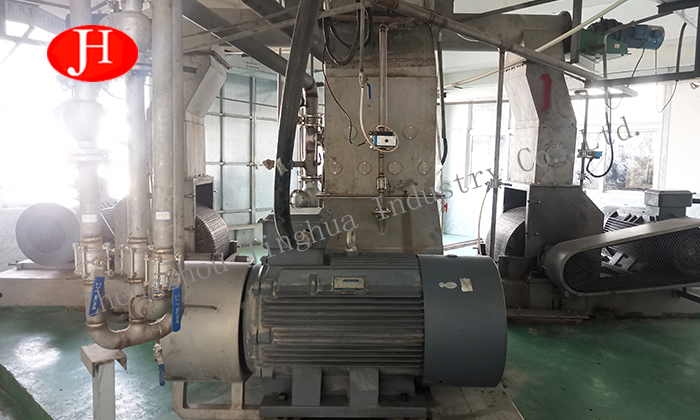

The material enters into the body of the file mill shell through the upper entrance, and is broken by the impact, shear and grinding effect of the saw blade moving at high speed.
The lower part of the rotor is equipped with a screen screen.
The material smaller than the size of the screen hole is discharged through the screen plate, and the particles larger than the size of the screen hole are blocked and remain on the screen plate to continue to be hit and grinder by the saw blade.
Main Technical Parameters
|
Model |
DCM8435 |
DCM8450 |
DCM8465 |
DCM1070 |
|
Main shaft rotating speed(r/min) |
2100 |
2100 |
2100 |
1470 |
|
Drum diameter(mm) |
Φ840 |
Φ840 |
Φ840 |
Φ1100 |
|
Drum width(mm) |
350 |
500 |
650 |
700 |
|
Power(Kw) |
110 |
160 |
200 |
250 |
|
Capacity(t/h) |
20-23 |
30-33 |
35-40 |
40-45 |
|
Dimension(mm) |
2170x1260x1220 |
2170x1385x1250 |
2170x1650x1380 |
3000x1590x1500 |
Application Scope
Widely used in Sweet potato, cassava, potato, konjac and other starch production enterprises.
