Crusher

Zhengzhou Jinghua Industry crusher is newly designed with compact structure, easy disassembly and low maintenance cost. The machine is widely used for cracking big materials. The raw material is usually fresh cassava tube, fresh sweet potato and after crushing you can get the finished product with a 20-30mm size. It is a precrushing.

Keywords：

Crusher

Projects

ABOUT US

Company Display

360 Degree Company Display

Features

01Fully stainless steel to be sure there is no corrosion.

02In dependent research and development,integrate with the same kind so fequipment performance from local and abroad manufactures, and combined with our many years useing esperience.

03Newly designed with compact structure,easy disassembly and low maintenance cost.

04Small volumes with large capacity,medium speed,low energy consumption and steady operation.

05To avoid duplication of material cutting and improvge cutting ability.Blade is sepcially made and is durable.

06Parts contact with material are made of stainless steel,to ensure materials not contaminated.

07This machine has features of low energy consumption, high capacity, fine particles and easy installation, easy maintenance.

08The machines is widely used for cracking of big material.

Product Details

Product details showcase quality

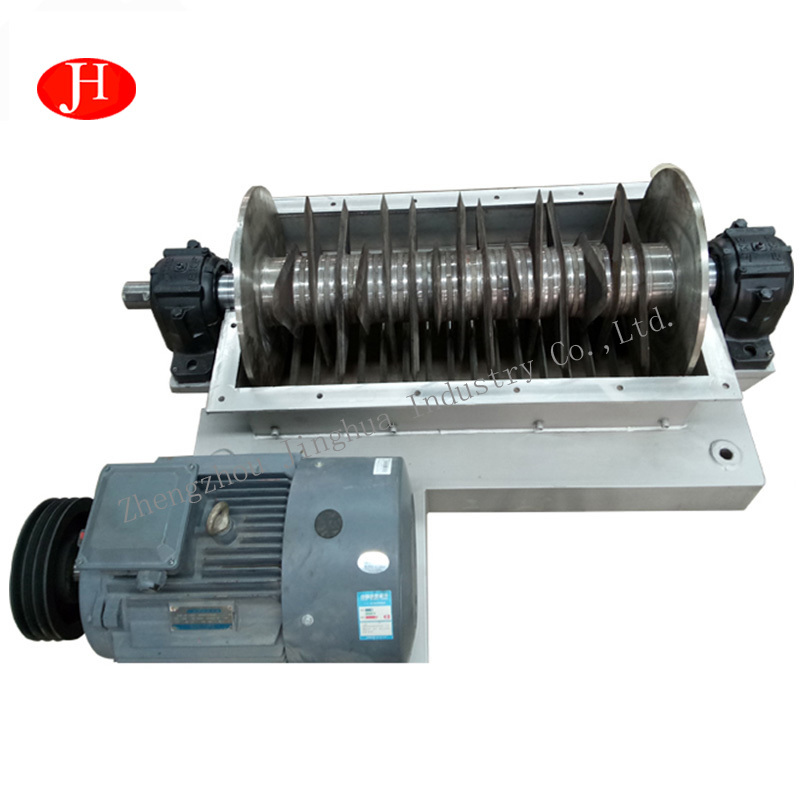

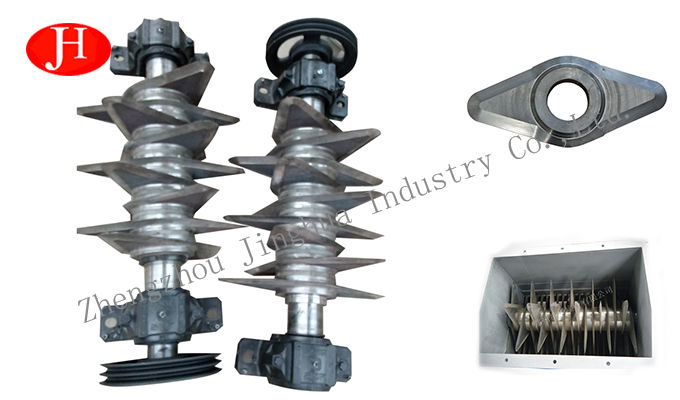

The main working part of the crusher is a rotary table with a blade.

The rotary table is composed of a spindle and a rotary table.The motor drives the rotary table to rotate at a medium speed in the slicing chamber, and the material enters from the upper feeding port,the upper part of the rotary knife is sheared by the rotary blade and is discharged at the lower part of the rotary knife.

Main Technical Parameters

Model	Blade Number (piece)	Rotor length (mm)	Power (Kw)	Dimension (mm)	Weight (kg)	Capacity (t/h)
DPS5050	9	550	7.5/11	1030x1250x665	650	10-15	Diameter of rotor:Φ480mm Speed of rotor:1200r/min
DPS5076	11	760	11/15	1250x1300x600	750	15-30
DPS50100	15	1000	18.5/22	1530x1250x665	900	30-50
DPS60100	15	1000	30/37	1530x1400x765	1100	60-80

Application Scope

The machine is widely used for cracking big materials.which is widely used in the processing of potato starch , cassava flour, sweet potato starch.
